Building AI Development Infrastructure: Hardware Upgrades and Workflow Optimization

TL;DR

Current hardware limits concurrent LLM development. Upgrading storage (3x faster), migrating to Arch Linux (stability), and planning new build with 256GB RAM, faster CPU, and exploring AMD GPUs for better VRAM/$ ratio.

The Challenge: Running Multiple LLMs Concurrently

My recent work with local LLMs has revealed practical limitations in my development setup. In my pgvector demo, I ran into RAM exhaustion when loading multiple models simultaneously, and I’ve continued to bump into the rails of GPU memory management experimenting with DSPy.

For the prompt optimization experiments I’m pursuing, I need to run:

The pair of RTX 3060s I picked up on eBay last year just isn’t cutting it. With 8GB VRAM each, I can run a Qwen 1.5B model comfortably, but running larger models has been tough.

Running on the CPU is painfully slow and my system is both dated and unoptimized for my new AI hobby.

The Solution: A New Build

I’m going to build a new PC and try to optimize for performance in a way that doesn’t sacrifice capability or cost more than I’m willing to spend.

So I’m going for an AMD Ryzen 9 9950X with 256GB RAM and a 13,400 MB/s SSD. I’m also going to try running vLLM with the Radeon 580 that got displaced by the 3060s and, if I can get it working, I’m going to look at the 32GB AMD video cards. They are considerably cheaper than the NVIDIA cards.

As I explored in my recent post on resource management, managing different profiles that balance VRAM, context length, and concurrent model loading in different ways is turning out to be table stakes for building anything interesting, but things get a lot easier with more available VRAM.

Hardware Upgrade Path

Storage: The Unexpected Bottleneck

While researching components for a new build, I discovered my current NVMe SSD was capped at 2400MB/sec. Current PCIe 4.0 drives that my motherboard supports are hitting 7000MB/sec.

Storage bandwidth matters. A $250 upgrade to a 2TB PCIe 4.0 drive effectively triples sequential throughput while doubling capacity. For workflows that repeatedly load models from disk, this is a meaningful improvement.

I’m resolved to maximize the performance of the SSD in the new build and I’ve found a new 4TB M.2 drive with a 13,400 MB/s transfer speed to do just that.

Planning for Scale

The goal is infrastructure that supports the experiments outlined in my upcoming demos: running multiple models simultaneously, testing hybrid VRAM/RAM configurations, and supporting longer context windows without slamming into memory barriers.

As the new workhorse, this build will focus on:

Development Environment Upgrade: Linux Infrastructure

With the new SSD in hand for my current workstation (a bit of a preview of toys to come), this was an opportune moment to address a persistent development environment issue.

The Stability Problem

My primary development system ran Ubuntu 24.04 LTS with KDE Plasma 5, which had become increasingly unstable. I’m not sure if it was related to the inference experimentation or just buggy drivers, but having all the menu dropdowns in my desktop environment go black in the middle of the day is just not acceptable.

After evaluating several distributions, I migrated to Arch Linux, in no small part to try out KDE Plasma 6.

Why Arch for AI development:

The installation process was non-trivial (Arch’s manual setup is definitely not streamlined), but the resulting system has so far been rock-solid for development work.

Workspace Ergonomics: A Brief Tangent

With a stable foundation in place, I encountered an unexpected friction point: window management ergonomics.

Visual Density and Cognitive Load

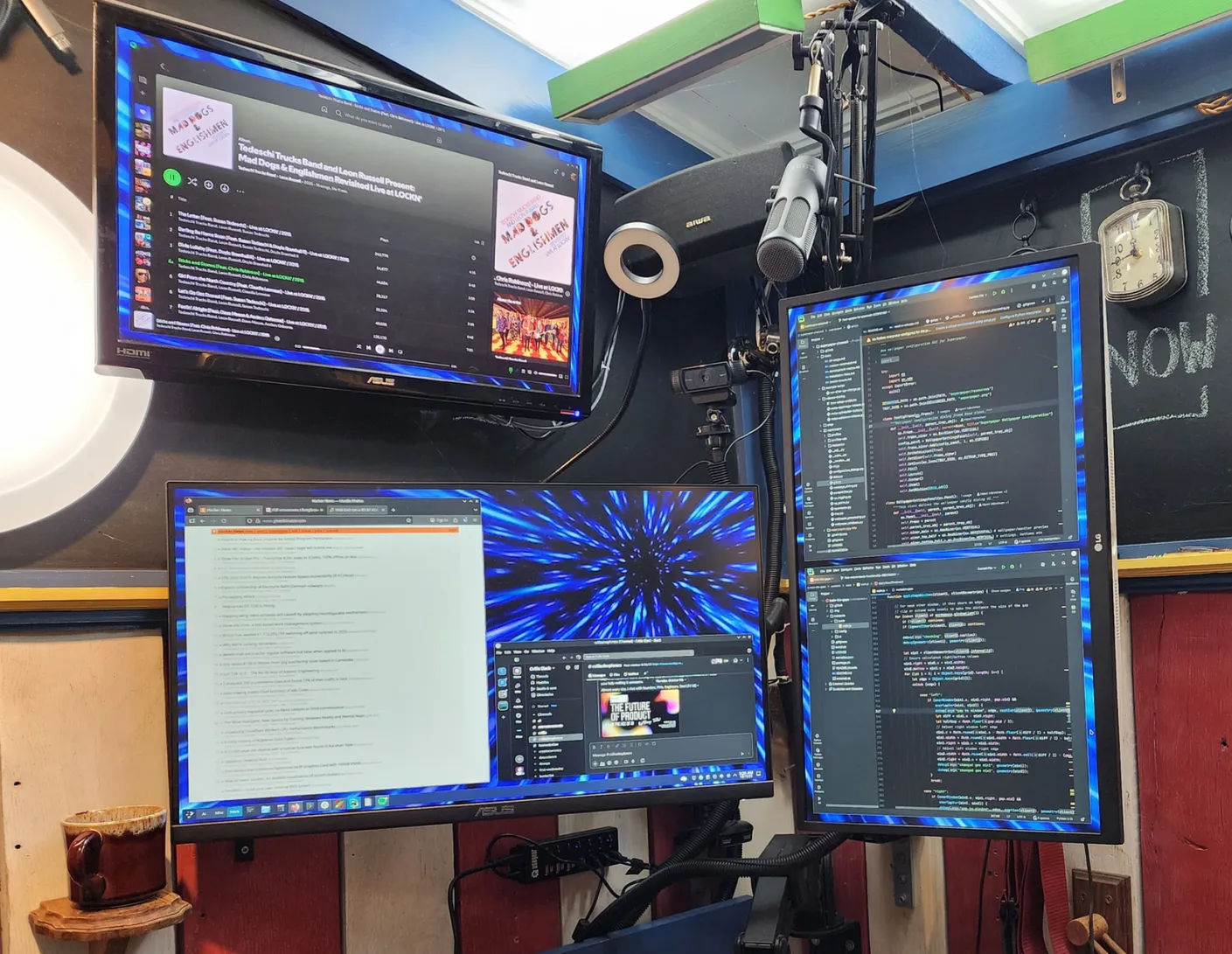

My workflow typically involves:

Without visual separation between windows, my attention stumbles from one application to the next, especially when dark mode makes it even more difficult to track the boundaries. Frankly, it’s a bit jarring to switch between applications and windows without the clear separation.

But the KWin window gaps script I had relied on in Plasma 5 was abandoned.

Quick Fixes: Forking and Adapting

I forked two projects to solve immediate workflow issues:

Window Gaps for Plasma 6: Merged an outstanding PR and fixed some edge cases in the tiling mathematics. Added logic to detect window dragging events, which resolved a long-standing bug where other windows would resize unexpectedly during drag operations.

SuperPaper for multi-monitor wallpapers: Used PyCharm’s AI assistant to adapt this tool for my specific multi-monitor setup with activity-specific wallpaper configurations. This makes it really easy to tell which activity you’re working in and with the Window Gaps layout, it’s visually stunning.

Both of these were relatively minor modifications (a few hours of work), but the ergonomic improvement was substantial. When you’re context-switching between model configurations, query results, and code multiple times per hour, reducing visual friction adds up.

Development Infrastructure Results

The combined upgrades have tangibly improved my AI development workflow:

Storage performance: Model loading times reduced significantly. vLLM’s model caching is noticeably snappier, and Docker container startup times for my PostgreSQL/pgvector stack are much improved.

System stability: No more desktop environment crashes.

Workspace clarity: The visual separation between windows and the visual cues for the activities reduces cognitive load when context switching.

Next Steps

Now that my main workstation is a little bit faster and a lot more stable, I’m ready for phase two of my AI development infrastructure upgrade:

I’m excited to see how much more performant my pipeline experiments will be with the addition of GPU capacity for larger models with the compute firepower for running multiple small models at once.

DSPy’s compilation approach uses larger models to iteratively optimize prompts and workflows for smaller models, improving their performance through automated refinement.

With DSPy’s more efficient use of GPU resources and with significantly more GPU capacity at the ready, I’m hoping to build a system that can perform reasonably well for the advanced workflows I’ve been seeing in IDE-based AI assistants. Stitching together these examples will be a good test of the infrastructure and an interesting challenge.

I’ve got a lot of build-time and wire organization efforts in my short term future, but, long-term, I’m working toward a framework that will pair system designers with domain experts for curation and feedback. So, first, I’m growing the AI lab, then it’s onward and upward to orchestrating inference, embedding, and agent tooling in a multi-host environment.
